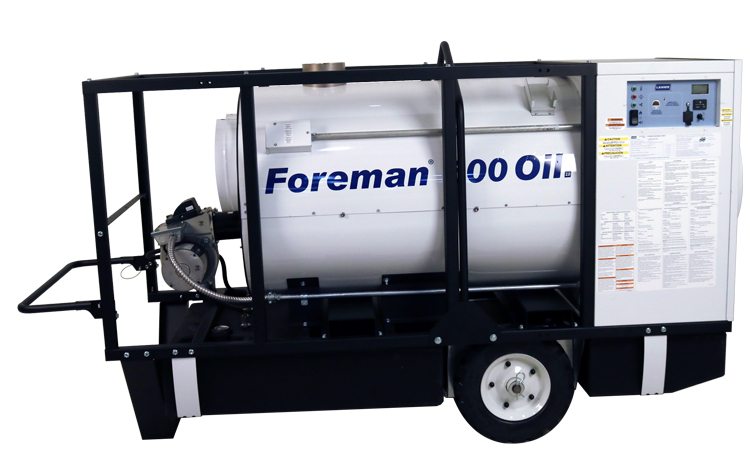

FOREMAN® 500 OIL DIRECT-FIRED PORTABLE HEATER
BTU/HR: 500,000

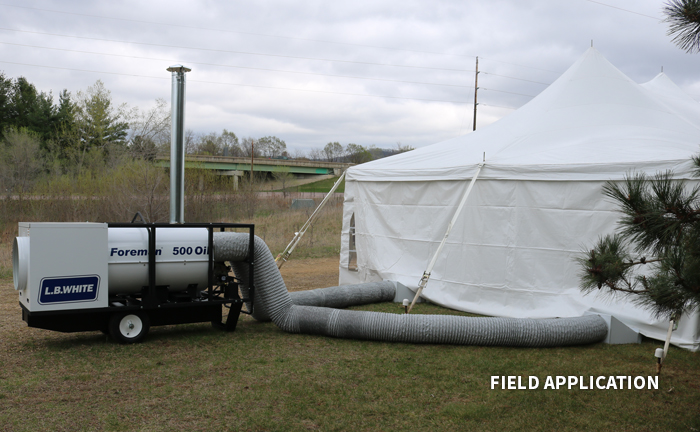

The Foreman® indirect-fired heater is ideal for situations that require clean, dry heat like non-ventilated tents and sealed temporary spaces. The L.B. White Foreman® has a heat exchanger that keeps heated and combustion air separate.
FEATURES
- 500,000 Btu/h
- Oil model
- Uses 120V or 240V, 60Hz, single phase electrical supply
- Indirect fired so safe for use in sealed environments
- Ductable up to 50 feet per outlet (2) 25’ ducts
- Powerful heat throw
- Quiet operation
SPECS
| FOREMAN® | 500 Oil |
|---|---|
| BTU/HR | 500,000 |
| Certified for use in US & CAN | Yes |
| Diesel | Yes |
| Max Run Time Per Diesel Tank (hrs) | 17 |
| Power Requirements (volts/hz/phase) | 120/60/1 |
| Size L x W x H (in.) | 94 x 32 x 53 |
| Required Accessories (Order Separately) | Vent Stack, Rain Cap, Regulator, Hose |
| Optional Accessories (Order Separately) | Thermostat, Stacking Kit |
| Air Distribution Accessories (Order Separately) | (2) 12" x 12" Duct Kit + 12" End Diffusers OR Duct Adapter + 16" Duct Kit |
ACCESSORIES
Duct
12” dia x 25’L
Part #: 30052
Sold separately.
Duct
16” dia. x 25’L
Part #: 30076
Sold separately.
Rain Cap Part #: 30162
Sold separately.
Hose
3/4” x 15 ft.
Part #: 25965
Sold separately.
Thermostat
Nema 4X w/ 25 ft.
Part #: 30125
Sold separately.
Adapter Kit
16" dia. (fits two 12" dia. ducting)
Part #: 30902
Sold separately.
Stacking Kit Part #: 30903
Sold separately.
Additional parts & accessories are available here.
OWNERS MANUAL
Schematics, setup instructions, and more for Foreman®
SERVICE PARTS
Identify the replacement parts you may need for Foreman® 500 Oil Direct-Fired Portable Heaters.
