FOREMAN® 230 DF DIRECT-FIRED PORTABLE HEATER
BTU/HR: 230,000

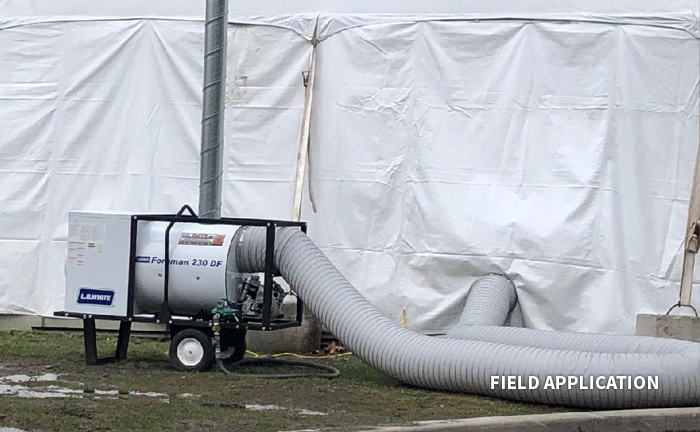

The Foreman® indirect-fired heater is ideal for situations that require clean, dry heat like non-ventilated tents and sealed temporary spaces. The L.B. White Foreman® has a heat exchanger that keeps heated and combustion air separate.
FEATURES
- 230,000 Btu/h
- Dual Fuel (LP/NG) model
- Uses 120V or 240V, 60Hz, single phase electrical supply
- Indirect fired so safe for use in sealed environments
- Ductable up to 50 feet per outlet (2) 25’ ducts
- Powerful heat throw
- Quiet operation
SPECS
| FOREMAN® | 230 DF |
|---|---|
| BTU/HR | 230,000 |
| Certified for use in US & CAN | Yes |
| Dual Fuel (LP Gas/NG) | Yes |
| Minimum LP Gas Tank Size (gal) | 100 |
| Power Requirements (volts/hz/phase) | 120/60/1 |
| Size L x W x H (in.) | 60 x 26.5 x 43 |
| Required Accessories (Order Separately) | Vent Stack, Rain Cap, Regulator, Hose |
| Optional Accessories (Order Separately) | Thermostat |
| Air Distribution Accessories (Order Separately) | 12" x 12" Duct Kit + 12" End Diffuser |
ACCESSORIES
Duct
12” X 25’
Part #: 30052
Sold separately.

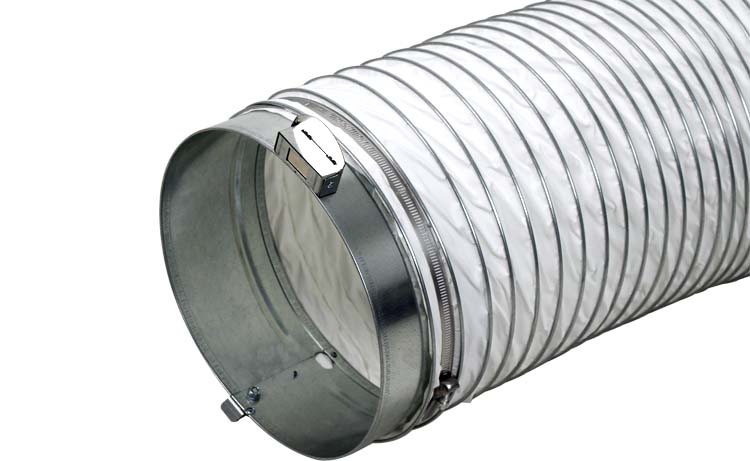

Duct
12” X 12’,
Part #: 26347
Sold separately.
Air Recirculation Kit
20” dia. x 25’ L
Part #: 30053
Sold separately.
End Diffuser
(fits on end of 12” dia. ducting)
Part #: 26350
Sold separately.
Rain Cap Part #: 30162
Sold separately.
Regulator Part #: 25141
Sold separately.
Hose
3/4” x 15 ft.
Part #: 25965
Sold separately.
Thermostat
Nema 4X w/ 25 ft.
Part #: 30125
Sold separately.
Additional parts & accessories are available here.
OWNERS MANUAL
Schematics, setup instructions, and more for Foreman®
SERVICE PARTS
Identify the replacement parts you may need for Foreman® 230 DF Direct-Fired Portable Heaters.
